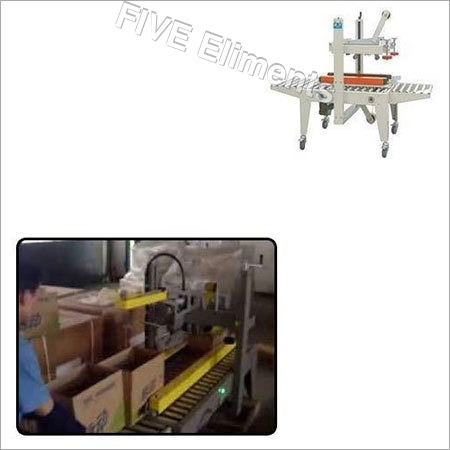

Carton Sealing Machine

Get a Price/Quote

Carton Sealing Machine Specification

Features
Energy Efficient, Adjustable height & width, Smooth operation

Application
Carton Box Sealing

Usage
Used in packaging industries for carton/box sealing

Power Supply
Single-phase AC

Noise Level
75 dB

Type
Carton Sealing Machine

Material
Stainless Steel

Feature
Durable and easy to operate

Auxiliary Packaging Machine Type
Sealing Machine

Capacity
10-20 cartons/minute

Computerized
No

Automatic Grade
Semi-Automatic

Control System
PLC Control

Drive Type
Electric

Power
200 W

Voltage
220 V / 50 Hz

Weight (kg)
110 kg

Dimension (L*W*H)
1650 x 800 x 1270 mm

Color
Silver & Yellow

Sealing Type
Top and Bottom Sealing

Installation
Floor mounted

Machine Frame
Powder coated steel

Conveyor Speed
20 meters/minute

Operating Temperature
5-40C

Tape Roll Core Size
3 inches

Max Carton Size (LWH)
500600 mm

Roller Type
Heavy Duty Rubber Roller

Sealing Method
BOPP/Adhesive Tape

Min Carton Size (LWH)
150180100 mm

Tape Width
48-60 mm

About Carton Sealing Machine

Abiding by the ethical industry norms, our organization is involved in providing robust quality Carton Sealing Machine for packaging industry. This machine is ideal for carton packing used in food, medicines, textile, merchandise, chemicals, home appliances, and so on. This machine adopts adherent tape to seal carton, fast and easily adjustable. It can finish two sides of upper and down part ones a time. Heavy duty construction, oversize gear motors, dual column design and less maintenance are the hallmarks of the Carton Sealing Machine for packaging industry.

Specifications:

Power: 1Ph, 220 V, 50 HZ, 200 W
Maximum Carton Size: 400x400/500 x 600 (WxH) mm
Minimum Carton Size: 100x100/140 x 150 (WxH) mm
Speed (m/min): 20
Available Adhesive tape: BOPP Tape
Height of Table: 580x780/535x780 (mm)
Width of Adhesive Tape: 36, 48, 60, 72 (mm)

Efficient Sealing for Diverse Applications

Experience reliable carton sealing with adjustable height, width, and high throughput of 1020 cartons per minute. Ideal for packaging industries, this machine is suitable for exporters, manufacturers, and suppliers seeking fast and secure box sealing solutions. The heavy-duty construction ensures stability and longevity in demanding environments.

User-Friendly and Safe Solution

This semi-automatic carton sealer features PLC control for easy, precise operation. The ergonomic design, low operational noise, and single-phase power supply make it adaptable for various workstation setups. Operators benefit from an energy-efficient system that is both durable and simple to maintain.

FAQs of Carton Sealing Machine:

Q: How does the carton sealing machine operate?

A: The machine uses an electric drive and a PLC control system to automate the top and bottom sealing of cartons with BOPP or adhesive tape. Operators load cartons, adjust the height and width as needed, and the machine efficiently seals boxes at speeds of up to 20 meters per minute.

Q: What carton sizes can this machine handle?

A: It is designed for a wide range of carton sizes, accommodating minimum dimensions of 150180100 mm (LWH) and up to an unlimited length, with a maximum width of 500 mm and a maximum height of 600 mm.

Q: When is it most beneficial to use this carton sealing machine?

A: This machine is most advantageous in packaging environments that require rapid, consistent, and secure carton sealing. It is ideal for medium to high-volume operations common in manufacturing, distribution, and export businesses.

Q: Where should the carton sealing machine be installed?

A: The machine is designed for floor-mounted installation, making it suitable for factory floors, packaging centers, or warehouses where stable and accessible placement is required.

Q: What is the process for changing tape or adjusting carton sizes?

A: Changing the tape is straightforwardreplace the 3-inch core tape roll on the designated holder. Adjustments for carton size are made using the easy-to-use height and width settings, allowing quick adaptation to different box dimensions.

Q: What are the main benefits of using this machine in packaging operations?

A: Key benefits include increased efficiency, consistency in sealing, reduced manual effort, and energy savings. The heavy-duty and energy-efficient design also ensures minimal maintenance and long-term reliability.
