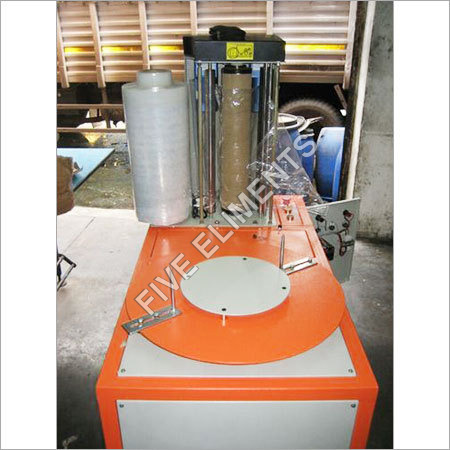

Box Stretch Wrapping Machine

Get a Price/Quote

MOQ : 1 Unit

Box Stretch Wrapping Machine Specification

Product Type
Box Stretch Wrapping Machine

Material
Mild Steel

Capacity
30-60 boxes/hour

Computerized
No

Automatic Grade
Semi-Automatic

Voltage
220 V

Power
1.5 kW

Conveyer Length
1800 mm

Rotating Speed
0-12 rpm (Adjustable)

Overlap Scope
30%-55%

Shift Speed
2.5 m/min

Dimension (L*W*H)
2500 x 1400 x 1650 mm

Weight (kg)
Approx. 400 kg

Color
Blue & Yellow

Control System
PLC Controlled

Max Wrapping Height
500 mm

Packaging Type
Manual and Automatic Wrapping

Noise Level
< 70 dB

Safety Features
Emergency Stop Button, Safety Guards

Film Roll Width
500 mm

Film Thickness
17-35 micron

Film Type
Stretch Film

Max Box Size
800 x 800 mm

Phase
Single Phase

Min Box Size
250 x 250 mm

Usage
Suitable for carton and box pallet wrapping

Box Stretch Wrapping Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Telegraphic Transfer (T/T), Cash in Advance (CID), Cheque, Cash Advance (CA)

Supply Ability
100 Units Per Week

Delivery Time
1 Week

Main Domestic Market
All India

About Box Stretch Wrapping Machine

We have been uniquely positioned ourselves as a dependable firm, engaged in manufacturing and supplying a commendable array of Box Stretch Wrapping Machine. This machine is ideal for wrapping food, cosmetic and electronics products with plastic and HDPE materials. At our sound production unit, we manufacture this machine using high quality materials. Available in different technical specifications, ours Box Stretch Wrapping Machine is highly demanded in the market. We offer this machine at reasonable prices.

Features:

Robust construction
Noise free operation
Easy installation

Product Dimensions (Max) : Width / length - 1.2 meters X Height - 700 mm.
Max Weight : 30- 40 Kg or As per customer.

Technical Specification:

Power: 1ph ac 220v 50/60 Hz., 3 kw
Machine Dimension: 1000X1250X1600
Body: Powder Coated.
Automation & Switch gear- Siemens
Motors - 3phase Induction motor 1400 rpm.
Turn Table Dia : 850mm

Efficient Wrapping for Versatile Packaging Needs

This machine streamlines the packaging process for a wide range of box sizes, accommodating both small and large cartons. With adjustable rotating speed and overlap scope, users can customize the wrapping process for optimal security and material usage. Designed with a user-friendly control system, it ensures consistent and professional results, enhancing productivity in busy manufacturing or export environments.

Advanced Safety and Easy Operation Features

Equipped with safety guards and an emergency stop button, this wrapping machine prioritizes user safety during operation. The PLC control enables precise adjustment of wrapping parameters while maintaining a noise level below 70 dB for a comfortable workplace. Whether opting for manual or automatic modes, users benefit from straightforward controls and reliable performance tailored to various packaging requirements.

FAQs of Box Stretch Wrapping Machine:

Q: How does the Box Stretch Wrapping Machine operate for both manual and automatic packaging?

A: The machine supports both manual and automatic wrapping processes. In manual mode, the user controls the wrapping cycle, while in automatic mode, the PLC system manages the entire process, adjusting speed and overlap according to preset values. This versatility makes it suitable for different packaging scenarios.

Q: What box and film sizes are compatible with this stretch wrapping machine?

A: The machine is designed to handle box sizes from a minimum of 250 x 250 mm up to 800 x 800 mm, with a maximum wrapping height of 500 mm. It uses stretch films with a roll width of 500 mm and a thickness range of 17-35 micron, ensuring secure wrapping for various carton formats.

Q: When is this wrapping machine most beneficial to use?

A: This machine is ideal when frequent, high-volume carton or box wrapping is required, such as in manufacturing, warehousing, or export operations. Its semi-automatic grade and adjustable settings facilitate efficient packaging during peak demands while maintaining consistent quality.

Q: Where can this stretch wrapping machine be installed and used?

A: With its compact dimensions (2500 x 1400 x 1650 mm) and standard single-phase voltage (220 V), the machine can be installed in warehouse packing areas, production lines, or shipping departments in India. Its mobility and robust build allow placement wherever efficient carton wrapping is needed.

Q: What safety features does the machine offer during operation?

A: The machine incorporates safety guards and an emergency stop button to ensure operator wellbeing. These features prevent accidents and allow users to halt the process instantly in emergencies, contributing to a secure working environment.

Q: How do the adjustable rotating speed and overlap scope enhance the wrapping process?

A: The rotating speed can be set from 0 to 12 rpm, and overlap scope ranges from 30% to 55%, allowing users to tailor the wrapping for box protection and film usage. These controls improve efficiency, reduce material waste, and enhance the durability of wrapped boxes in transit.
